Renegade’s I-Series Conveyor Pass-Through Systems offer superior cleaning and drying solutions for complex, multi-ported parts through efficient inline conveyor operations. Designed to enhance productivity and operational efficiency, our industrial parts washer systems feature:
Review our key features, highlights and options below.
Custom Solutions: Partner with Renegade to design and customize an industrial parts-washing system that meets your specific requirements, enhancing efficiency and productivity.
Expert Support: Access Renegade’s team of experts who are dedicated to delivering solutions that support your success.
Safety First: Renegade prioritizes employee safety with solutions designed to promote a safe working environment.

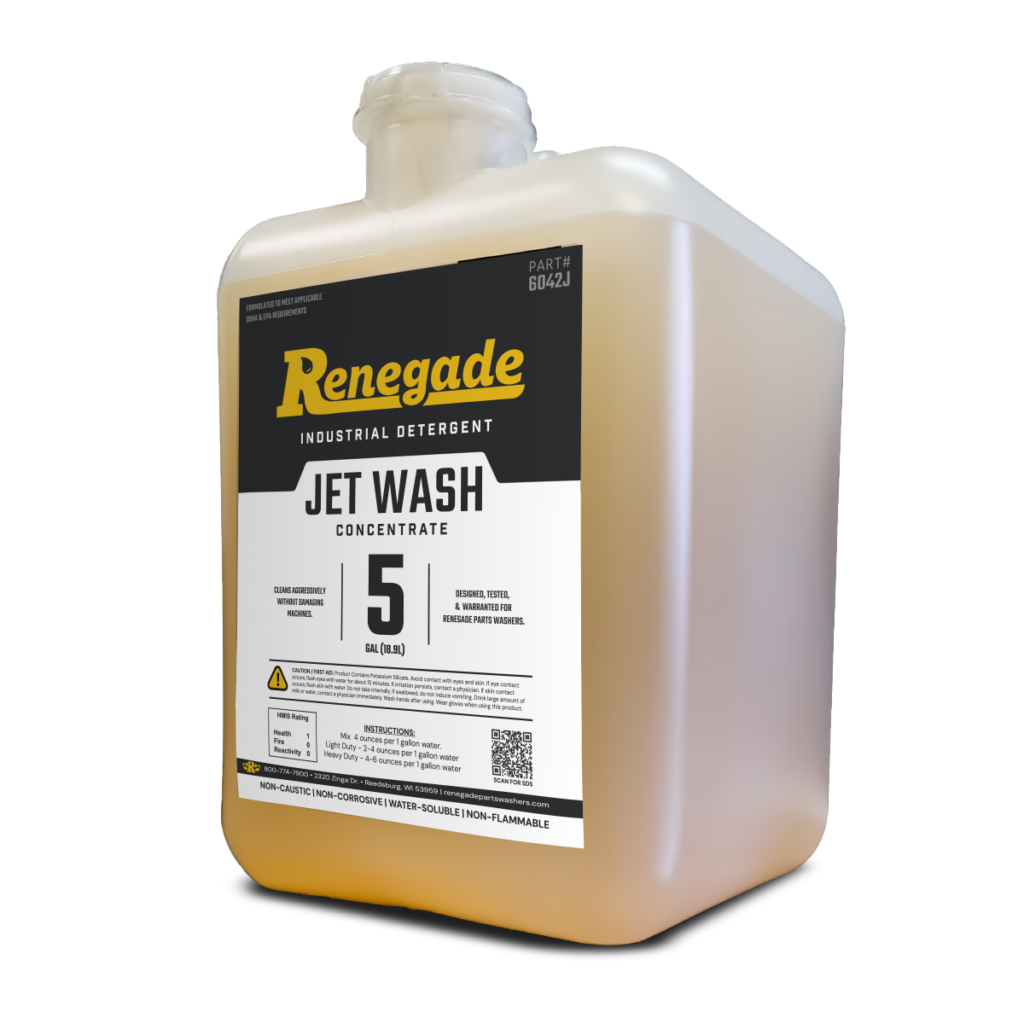

Environmental Responsibility: Utilize Renegade’s solvent-free detergents and aqueous cleaning systems, which are effective and environmentally friendly.
Partner with us to design and customize a parts-washing system that’s tailored specifically to your requirements. We enjoy the engineering challenge and look forward to providing you with solutions.
System Type: Automatic belt conveyor, 3-stage cleaning with PLC integration
Power: 230 volt, 3 phase, 7.5 hp wash cycle pump each stage
Heating: 512 btu gas heated wash and rinse stages / 225 btu gas heated dry stage
Tank Volumes:
Wash Zone Dimensions:
System Type: Automatic compact belt conveyor, 3-stage cleaning with PLC integration
Power: 230 volt, 3 phase, 3 hp wash cycle pump each stage
Heating: 24 kw @ 460 v heaters each stage
Tank Volumes: 119 gallons each stage
Wash Zone Dimensions:
System Type: Automatic belt conveyor, 3-stage cleaning with PLC integration
Power: 230 volt, 3 phase, 15 hp wash cycle pump
Heating: 45 kw at 230 volt; 60 kw at 460 volt heaters each stage
Tank Volumes: 402 gallons each stage
Wash Zone Dimensions:
System Type: Automatic belt conveyor, 3-stage cleaning with PLC integration
Power: 230 volt, 3 phase, 15 hp wash cycle pump
Heating: 45 kw at 230 volt; 60 kw at 460 v heaters each stage
Tank Volumes: 840 gallons each stage
Wash Zone Dimensions:
System Type: Automatic roller conveyor, 3-stage cleaning with PLC integration
Power: 230 volt, 3 phase, 7.5 hp wash cycle pump
Heating: 27 kw at 230 volt; 36 kw at 460 volt heaters each stage
Tank Volumes: 463 gallons each stage
Wash Zone Dimensions:
System Type: Automatic conveyor, 2-stage cleaning with PLC integration
Power: 230 volt, 3 phase, two 30 hp wash cycle pumps
Heating: 1.2 million btu gas heat system
Tank Volume: 1300 gallons
Wash Zone Dimensions:
System Type: Automatic conveyor drying system with PLC integration
Power: 230 volt, 3 phase, three 2 hp blowers
Load Capacity: 2000 lbs
Wash Zone Dimensions:
| Model | Wash Zone Dimensions | Load Capacity | Sump Capacity | Pump Information | Heater Size | Dimensions |
|---|---|---|---|---|---|---|
| I-Series Compact WRD SS Pass-Through Wash System | 1" H x 12" W | 50 lbs. per foot | 119 Gal. each | 3 HP Heavy Duty Pumps | 24 KW Wash and Rinse | 96" L x 102" H x 67" D |
| I-Series 2614B WRD SS Pass-Through Wash System | 16" H x 24" W | 50 lbs. per foot | 402 Gal. each | 7-1/2 HP Heavy Duty Pumps | 45 KW Wash; 60 KW Rinse | 25'L x 9'1" H x 8' 2-1/2" D |
| I-Series CCS 3624B WRD SS Pass-Through Wash System | 24" H x 36" W | 1000 lbs. | 840 Gal. each | 15 HP Heavy Duty Pump | 45 KW Wash; 60 KW Rinse | 9'3" L x 39'6" H x 11'1/2" D |
| I-Series CCS 2412R WRD SS Pass-Through Wash System | 12" H x 24" W | 1500 lbs. | 493 Gal. each | 7-1/2 HP Heavy Duty Pump | 27 KW Wash; 27 KW Rinse | 253" L x 106" H x 119" D |
| I-Series Heavy Duty Pass-Through WD Gas Heat Wash System | 21" H x 25" W | 4500 lbs. | 1300 Gal. | Two 30 HP Heavy Duty Pumps | 1.2 Million BTU Gas Heat System | 34'-1/2" L x 9'-1/4" H x 10'-1/2" D |
| I-Series Pass-Through Conveyor Parts Dryer | 7" H x 19" W | 2000 lbs. | N/A | N/A | Three 2 HP Blowers | 142" L x 91" H x 63" D |
